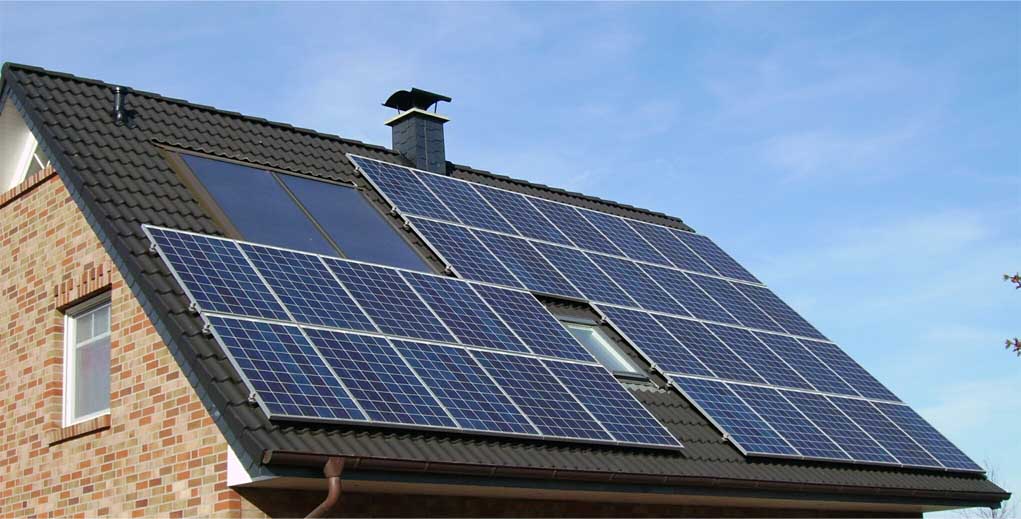

Fiy Off-grid/grid type and power station Solar power systems is high-power supply equipment of used sunlight as power or merge into AC power grid .
It produce the electric energy and save by the storage battery during the day, then provide the DC12V, DC24V, DC48V and AC220V power as per your requirements when you use during day or night. It’s high-tech and green power system for no electric line and remote area instead of traditional generating equipment. The system is consisted of high energy conversion efficiency and high outdoor durability solar module (overall corrosion resistance, storms, hail resistant) and high-performance, multi-protection charge / discharge / inverters(with the functions to prevent battery from over-discharge, overcharge, short circuit, reverse polarity, overload, lightning, etc.) and long life maintenance-free batteries and other accessories. The DC 5V 12V, AC 220V power output can be used for power supply of multiple load equipments. Optional accessories (charger adapter digital products, energy saving lamps, LED lights).
Target facilities: power system for rural and remote areas
Usage: household appliances, public lighting, other AC electrical equipments
Advantages:
1. the load capacity of terminal equipment / stations is variable, the power supply is more flexible;
2. can running intensively and control the PV power systems separately;
3. can easy to establish the facility monitor system, do not need to lay long-distance transmission lines, good system stability, less maintenance, low maintenance cost, daily / monthly / annual generating capacity clearly visible, and can be entered into the computer record.
| Type |
Bracket material |
Solar panel |
Solar battery |
Controler |
Inverter |
Working times |
Continue weteather |
Load power |
| SP-OFFG1000 |
Special steel |
1000Wp |
12V 150Ah*8 |
24V 40A |
24V1000W*2 |
3~6h/day |
2days |
DC/AC800 W |
| SP-OFFG1500 |
Galvanized / powder |
1500Wp |
12V 230Ah*8 |
24V 50A |
24V1500W*2 |
3~6h/day |
2days |
DC/AC1200 W |
| SP-OFFG2000 |
Special steel |
2000Wp |
12V 250Ah*8 |
24V 60A |
24V1000W*4 |
3~6h/day |
2days |
DC/AC1400 W |
| SP-OFFG3000 |
Special steel |
3000Wp |
12V 180Ah*16 |
24V 50A*2 |
24V1500W*4 |
3~6h/day |
2days |
DC/AC2000 W |
| SP-OFFG5000 |
Galvanized |
5000Wp |
12V 180Ah*24 |
24V 80A*2 |
24V2000W*4 |
3~6h/day |
2days |
DC/AC3000 W |
| SP-OFFG9000 |
powder |
9000Wp |
12V 180Ah*48 |
48V 150A |
48V5000W*4 |
3~6h/day |
2days |
DC/AC6000 W |
Remark: Other type systems we can design in accordance with the need of customer |
